HYBRID SOLAR INVERTERS · 10000 Solar Pro

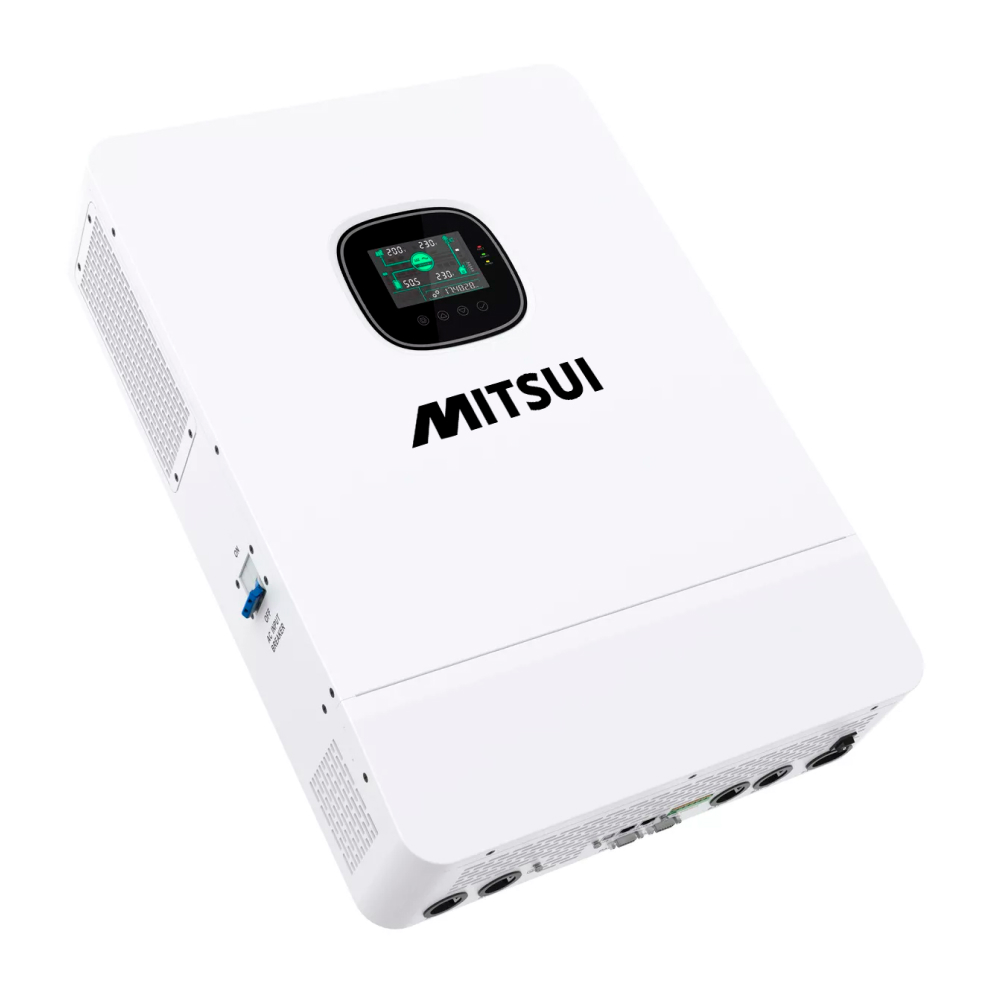

Mitsui 10000 Solar Pro Hybrid Inverter (Wi-Fi, parallel)
10 kW with parallel connection. For homes with PV or offices.
Power
10 kW
Model
10000 Solar Pro
Availability
Made to order
€1,480
- Shipped across the EU from the UK warehouse within 48 h of order confirmation
- Payment: bank transfer, card, or cash on delivery for orders under €5 000
- 24-month warranty or 1000 running hours; EU service network
- Commissioning and operator training available under a separate contract
Specifications
| Type | hybrid solar inverter |
| Class | professional |
| Efficiency | 92% |
| Max input voltage | 275 V |
| Digital display | yes |
| Interface | USB, Wi-Fi |
| Number of phases | single-phase (220 V) |
| Cooling | air-cooled |
| Operating temperature | −10 … +50 °C |
| Charge mode | automatic |
| Charge current | 120 A |
| Solar charge current | 200 A |
| Frequency | 50 Hz |
| Rated power | 10 kW |
| Max power | 15 kW |
| Battery voltage | 48 V |
| Battery type | Li-Ion |
| Short-circuit protection | yes |
| Overload protection | yes |
| Enclosure material | metal |
| Protection class | IP20 |
| Installation type | wall-mounted |
| Smartphone control | yes |
| Noise level | 60 dB |
| Parallel connection | yes |
| Warranty | 12 months |
